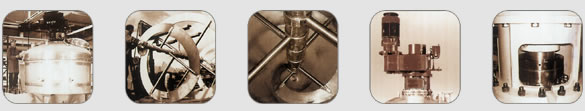

    VSM Vertical Ribbon Mixer



      Application

      #Mixing of free-flowing solids, such as fine chemicals, pigments, fertilizers and metal powders.

      #Crystalline powders sensitive to shear.
      #Blending of batches.
      #Mixing liquids into solids.
      #The equipment design (agitated vessel) lends itself well to the typical layout concept in chemical plants.
      #At low circumferential speeds also suitable for hazardous zones.

    Features
      #Positive displacement mixer for free-flowing solids.

      #Cantilevered shaft with no contact with product..
      #Narrow slot between the agitator and vessel wall prevent product build-up there.
      #Standardized agitator drives ensure reliable operation and low maintenance costs.
      #Appropriate shaft seal systems for different application. Installing the shaft seal away from the product enables the tried-and-tested Hunlong standard agitator seals to be used.
      #GMP design----- special O-ring geometries, high quality surface finishes and the absence of dead spaces.
      #CIP concepts thought out to the last detail guarantee validatable cleaning procedures.
      #The vessel can be heated or cooled by means of an optional external jacket (for choice).
    #Chopper mounted on top can prevent lumps forming.








      Function


      #Intensive mixing and blending.
      #The product is displaced upward near to the wall and flows downward again at the center.
      #Gentle but thorough mixing of free flowing bulk materials, large volumes are blended in a short time.
      #High degree of homogeneity achieved.
      #Almost complete discharge of contents.



    Parameter
