    Inline High-shear Mixers

      点击放大

    Features:

    Design for continuous-duty production-scale operation; Narrow particle distribution; Zero dead corner. Easy to operate, can realize Automation
    ◆Low noise
    ◆Transmission shaft with cantilever can realize vertical input and horizontal output.
    ◆Working under high-temperature, high-viscosity and high-flow working condition, such as Modified Asphaltum, Paper pulp Disperse, Plastic, Rubber etc.
    ◆Mechanical/ Lip / Stuffing seal optional
    ◆Storage tin is applied not only in series-wound craft, but also in continuous-duty craft. This design ensures all materials to be subjected to intense mechanical and hydraulic shear before they are exported. Also special single mechanical seal or double mechanical seal is suitable for high intensive work.
    ◆ Three types’ series Inline High-shear Mixers can suitable for different desires.


      ME400A-1 Series Inline High Shear Mixers


    Features :There is a pair of stator/rotor assemblies in the work tank, and transmission shaft works with cantilever. Transmission shaft directly contacts with driver. Usually Mechanical seal is applied, also other types are optional.
    Applications:Medium or small batch continuous-duty production-scale operation. It is better to work with Batch Model High-shear.
    Speicial:Built-in hanical Seal; Contacts with materials directly; Applied in low-velocity liquids.





      ME400B-1 Series Inline High Shear Mixers


    Features :There is a pair of stator/rotor assemblies in the work tank, and transmission shaft works with cantilever. The flexible stalk connects the driver and the principal axis in the bearings box, which can improve the efficiency of the axis of rotation. The seal manner is due to the different work condition.
    Applications:Big or Medium batch continuous-duty production-scale operation. It is better to work with Batch Model High-shear.
    Speicial:External Mechanical Seal; Do not contact with materials; Applied in medium or High viscosity liquids.


    ME400-3 Series Inline High Shear Mixers


      Features :There are three pairs of stators/rotors assemblies in the work tank, materials are under high intense mechanical and hydraulic shear between the narrow gaps of all three pairs of stators/rotors materials before they are exported.

    点击放大


    Coarse teeth
    Medium teeth
    Thin teeth
    Hit, stave, cutting, dissolution,
    thick disperser
    disperser, refinement, acceleration
    dissolve, emulsification
    superfine disperser, enhancement
    emulsifies, isotropically, thick liquid

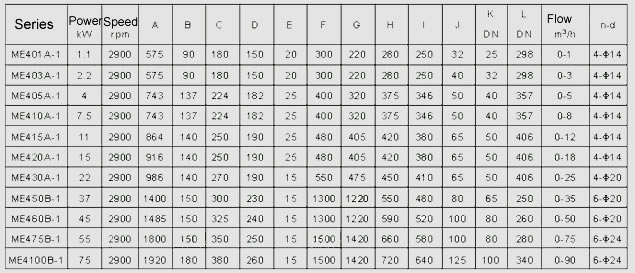

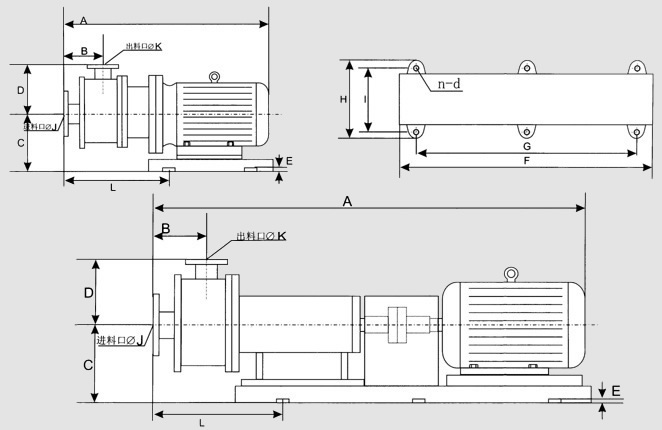

      ME400A-1, ME400B-1Series Inline High Shear Mixers


    放大点击


    注:
    ◆表中流量范围是指介质为“水”时测定的数据,表中所列型号的出口压力≤0.2MPa。
    ◆ 如采用循环工艺,建议与间歇式高剪切分散乳化机配合使用。
    ◆如有高温、高压、易燃、易爆、腐蚀性等工况,必须明确提供相关准确的参数,以便正确选型定制。
    ◆对流动性较差的介质,建议在入口处用流量相匹配的泵输送,泵入的压力≤0.2MPa。
    ◆ 本表数据如有更改,恕不另行通知,正确参数与提供实物为准。

      ME400-3Series Inline High Shear Mixers

    ◆表中流量范围是指介质为“水”时测定的数据。
    ◆ 如采用循环工艺,建议与间歇式高剪切分散乳化机配合使用。
    ◆ 如有高温、高压、易燃、易爆、腐蚀等工况,必须明确提供相关准确的参数,以便正确选型定制。
    ◆ 对流动性较差的介质,建议在入口处用流量相匹配的泵输送,泵入的压力≤0.2MPa。
    ◆ 本表数据如有更改,恕不另行通知,正确参数与提供实物为准。
    ◆ 粘度每增加1000mPax,标称的物料流量将减少20%。
    ◆在粘度为3000mPas左右时必须泵入。
    ◆ 所用的泵应尽可能连续泵入。
    ◆使用泵输入时,必须考虑到分散机的功耗。
    ◆ 物料流量较小时,必须注意观测温度,考虑在输入端安装泵以增加流量。
